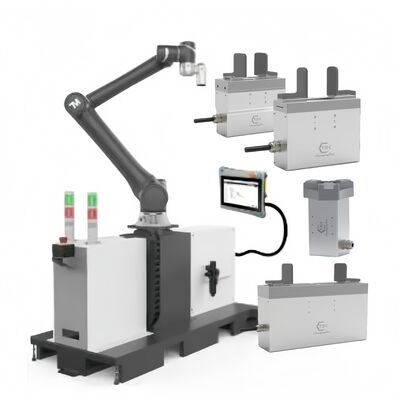

Techman TM5-700 TM5-900 AI Cobot CTPM2F40 CTPM2F40S CTPM2F60S CTPM2F120 CTPM3F10 6 Axis Industrial Robot Flat Hand Gripper

Techman TM5-700 TM5-900 AI Cobot CTPM2F40 CTPM2F40S CTPM2F60S CTPM2F120 CTPM3F10 6 Axis Industrial Robot Flat Hand Gripper

MOQ: 1
가격: US $12500.00 - 20000.00/ Set
표준 포장: 판지 상자/나무 상자
배달 기간: 75~90일
결제 방법: 티/티
공급 능력: 매년마다 200개 세트
자세한 정보
원래 장소
중국
브랜드 이름
Techman Robot
모델 번호
TM5-700
전압:
DC 48V
전력(w):
400W
최대 적재 중량:
6kg
전형적 속도:
1.1m/s
반복성:
± 0.05mm
전원공급장치:
100-240VAC,50-60Hz
IP 분류:
IP54(로봇 팔), IP32(제어 상자)
온도:
0-50 ℃
최대 속도:
4m/s
도달하다:
900mm
최소 주문 수량:
1
가격:
US $12500.00 - 20000.00/ Set
포장 세부 사항:
판지 상자/나무 상자
배달 시간:
75~90일
지불 조건:
티/티
공급 능력:
매년마다 200개 세트
제품 설명
Product Overview

The Techman TM5-900 is a 6-axis collaborative robot with 900 mm reach and 6 kg payload. It includes an integrated vision system for object detection and location. The longer reach makes it ideal for tasks that need more workspace than the TM5-700, while keeping the same lightweight and safe design for human-robot collaboration.

Features
  • Built-in vision with 5MP color camera
  • Hand-guiding and intuitive teaching
  • TMflow graphical programming
  • Safety-rated design for collaborative work
  • Built-in I/O and communication protocols
  • No external vision PC needed
  • Flexible mounting options
Technical Specifications
Payload
6 kg
Reach
900 mm
Degrees of Freedom
6 axes
Repeatability
±0.05 mm
Maximum Speed
4 m/s (joint speed)
Vision
Integrated 5MP color camera, 1.5 m * 1.5 m working area
IP Rating
IP54
Power Consumption
~200 W average
Applications
  • Vision-guided pick and place
  • Machine loading/unloading
  • Assembly and testing
  • Packaging and sorting
  • Medium-range handling tasks
FAQ

Q: What's the difference from TM5-700?

A: TM5-900 has 900 mm reach vs 700 mm.

Q: Is vision accurate?

A: Yes – integrated camera handles real-time detection.

Contact Us

Email:edwardzhao@gbsxj.com

Phone/WeChat/WhatsApp:+8615121023088

Related Products
  • TM5-700 (shorter reach)
  • TM12 / TM14 (higher payload)
  • TM AI Cobot accessories
  • TMmobile platform
