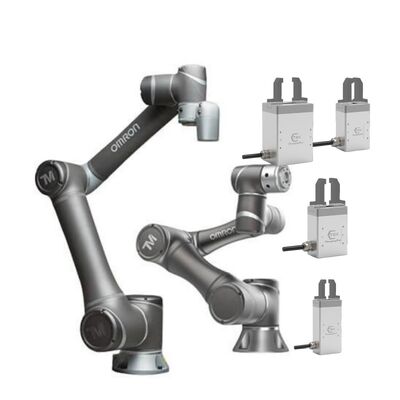

Techman AI Cobot TM5-700 TM5-900 Collaborative Robot Arm CTPM2F8S CTPM2F14S CTPM2F20 CTPM2F30 Zhixing Industrial Flat Hand

Techman AI Cobot TM5-700 TM5-900 Collaborative Robot Arm CTPM2F8S CTPM2F14S CTPM2F20 CTPM2F30 Zhixing Industrial Flat Hand

MOQ: 1
가격: US $12000.00 - 20000.00/ Set
표준 포장: 판지 상자/나무 상자
배달 기간: 75~90일
결제 방법: 티/티
공급 능력: 매년마다 200개 세트
자세한 정보
원래 장소
중국
브랜드 이름
Techman Robot
모델 번호
TM5-700
전압:
DC 48V
전력(w):
400W
최대 적재 중량:
6KG
전형적 속도:
1.1m/s
반복성:
± 0.05mm
전원공급장치:
100-240VAC,50-60Hz
IP 분류:
IP54(로봇 팔), IP32(제어 상자)
온도:
0-50 ℃
최대 속도:
4m/s
도달하다:
700mm
최소 주문 수량:
1
가격:
US $12000.00 - 20000.00/ Set
포장 세부 사항:
판지 상자/나무 상자
배달 시간:
75~90일
지불 조건:
티/티
공급 능력:
매년마다 200개 세트
제품 설명
Product Overview

The Techman TM5-700 is a compact 6-axis collaborative robot with built-in vision system. It has 700 mm reach and 6 kg payload, making it suitable for medium-sized tasks where space is limited but precision and vision guidance are needed. The integrated camera and AI processing allow it to see, locate, and pick objects without extra hardware.

Features
  • Built-in vision system with color camera
  • Easy hand-guiding teaching
  • TMflow drag-and-drop programming
  • Compliant safety design (ISO/TS 15066)
  • Built-in I/O and Modbus support
  • No external PC required for vision tasks
  • Fast setup for pick & place and assembly
Technical Specifications
Payload: 6 kg
Reach: 700 mm
Degrees of Freedom: 6 axes
Repeatability: ±0.05 mm
Maximum Speed: 4 m/s (joint speed)
Vision: Integrated 5MP color camera, 1.2 m * 1.2 m working area
IP Rating: IP54
Mounting: Floor, ceiling, wall
Power Consumption: ~200 W average
Applications
  • Pick and place with vision
  • Machine tending
  • Assembly and screw driving
  • Packaging and palletizing
  • Quality inspection tasks
FAQ

Q: Does it need extra vision hardware?

A: No – vision is built-in with camera and processor.

Q: Is programming easy?

A: Yes – TMflow uses drag-and-drop blocks.

Contact Us

Email:edwardzhao@gbsxj.com

Phone/WeChat/WhatsApp: +8615121023088

Related Products
  • TM5-900 (longer reach version)
  • TM12 / TM14 (higher payload models)
  • TMvision add-ons
  • TMmobile base
