| MOQ: | 1 |
| 가격: | US $44500.00 - 51500.00/ Set |
| 표준 포장: | 나무 상자 |
| 배달 기간: | 90 일 |
| 결제 방법: | t/t |
| 공급 능력: | 연간 1000 세트 |

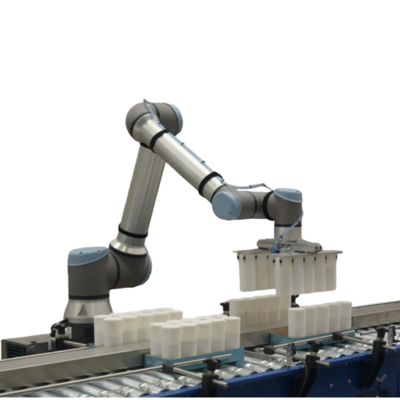

The UR8 Long by Universal Robots is designed for tasks that require extended reach, high precision and collaborative deployment. With a reach of 1750 mm, payload capacity of up to 10 kg, and a slender footprint of Ø 204 mm, this cobot fits well into space-constrained cells while delivering robust performance. universal-robots.com
It handles applications including welding, material handling, machine tending, quality inspection, and more. Built for fast deployment and safe human-robot collaboration, the UR8 Long helps manufacturers automate more complex tasks without large upfront system changes.
Long 1750 mm reach for wide coverage in one cell
Payload up to 10 kg enabling heavier tools or end-effectors
Compact Ø 204 mm footprint for space-efficient installation
Lightweight arm (~44.7 kg) for easier mounting on rails, overhead beams or gantries
Advanced collaborative safety features: built-in force sensing and collision detection
Intuitive programming and fast deployment with UR’s PolyScope software
Suited for welding, pick-&-place, inspection, polishing, and machine tending
| Parameter | Value |
|---|---|
| Model | UR8 Long |
| Reach | 1750 mm / 68.9 in universal-robots.com |
| Payload | Up to 10 kg / 22 lbs universal-robots.com |
| Footprint | Ø 204 mm universal-robots.com |
| Weight | Approx. 44.7 kg / 98.5 lbs universal-robots.com |
| Applications | Welding, material handling, inspection, machine tending |
| Safety | Collaborative certified, force & collision sensing |
| Software Platform | PolyScope (with MotionPlus support) |
Welding cells: ideal for long seam welds, gantry or overhead mounting in fabrication. universal-robots.com
Pick & place: large reach enables handling of big assemblies or deep bin picking. PR Newswire
Inspection & quality control: extended reach with compact wrist allows accessibility in tight spaces.
Machine tending and feeder loading: flexible automation of repetitive tasks to free up skilled labor.
Q1: What is the main advantage of UR8 Long over standard collaborative robots?
A1: The UR8 Long offers extended reach (1750 mm) combined with high payload (up to 10 kg) while maintaining a compact footprint, enabling automation in larger volumes or depths within space-constrained cells.
Q2: Is UR8 Long safe to work alongside humans?
A2: Yes. It includes collaborative safety features such as force sensing and collision detection, allowing flexible deployment and safe human-robot interaction.
Q3: How long is the typical deployment time for the UR8 Long?
A3: With intuitive programming and UR’s ecosystem, a basic setup can often be deployed within hours. The extended reach model adds capability without major additional complexity.
Q4: What industries benefit most from the UR8 Long?
A4: Automotive, metal fabrication, heavy equipment, machine tool tending, and general industry where long reach and flexibility are required.
For more information, quotations or technical support:
Phone: +86-15000725058
Email: edward.zhao@gongboshi.com
Website: https://www.shgongboshi.com/contactus.html
Universal Robots UR10e Collaborative Robot
Universal Robots UR16e Collaborative Robot
Fanuc CRX-30iA Collaborative Robot
KUKA LBR iico Collaborative Robot
UR8 Long, Universal Robots, collaborative robot arm, long-reach cobot, industrial cobot, welding cobot, pick-and-place robot
