10KG Payload Collaborative Robot 6 Axis Industrial Robotic Arm AUBO I10

10KG Payload Collaborative Robot 6 Axis Industrial Robotic Arm AUBO I10

자세한 정보
브랜드 이름
AUBO
Model Number
I10
강조하다:

6 Axis Industrial Robotic Arm

,

10KG Payload Industrial Robotic Arm

,

Industrial Robotic Arm 6 Axis

제품 설명

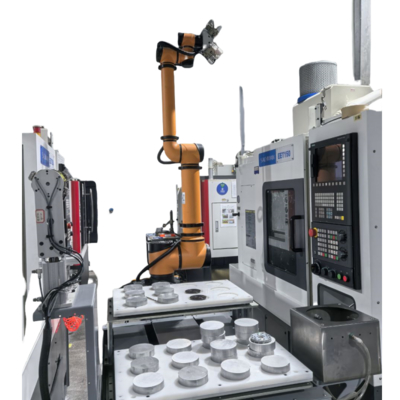

AUBO i10 - 10KG Payload Collaborative Robot 6 Axis Industrial Robotic Arm
Overview

The AUBO i10 is a high-performance collaborative robot (cobot) from AUBO Robotics, designed to meet diverse automation needs across industries. This 6-axis robot features a 10 kg payload capacity and extended reach, making it suitable for a wide range of tasks from material handling to quality inspection.

Built for close human interaction, the AUBO i10 includes collision detection, force-limiting joints, and user-friendly programming, supporting rapid deployment even in dynamic manufacturing environments. Its open interface architecture (supporting ROS, MODBUS, CAN, Ethernet/IP, etc.) allows easy integration into smart factories and flexible cells.

Key Features
  • 10 kg Payload Capacity - Ideal for heavier collaborative tasks
  • 1350 mm Maximum Reach - Covers a wide working envelope
  • 6 Degrees of Freedom - Enables complex, flexible motions
  • ± 0.03 mm Repeatability - High precision for delicate operations
  • User-Friendly Programming - Supports hand-guiding, flowchart & script modes
  • Safety-Certified - Force-limited design meets ISO/TS 15066 standards
  • Open Control Platform - Supports secondary development via multiple protocols
  • Lightweight & Modular - Easy to redeploy across different stations
  • Energy Efficient - Low power consumption with minimal operating costs
Technical Specifications
Payload 10 kg
Reach 1350 mm
Degrees of Freedom 6 axes
Repeatability ±0.03 mm
Joint Speed Up to 2.1 rad/s (depending on axis)
Tool I/O Digital/Analog I/O + Power supply
Programming Interface Teach pendant, PC, ROS, mobile interface
Communication Protocols Ethernet/IP, Modbus, TCP/IP, CAN, ROS, PROFINET
Weight ~38 kg
Mounting Orientation Any (floor, ceiling, wall)
Power Supply 100-240 VAC
IP Rating IP54 (standard)
Safety Compliance ISO 10218-1, ISO/TS 15066 compliant
Typical Applications

The AUBO i10 collaborative robot is designed for versatile industrial applications including material handling, assembly, packaging, quality inspection, and machine tending in manufacturing environments.
